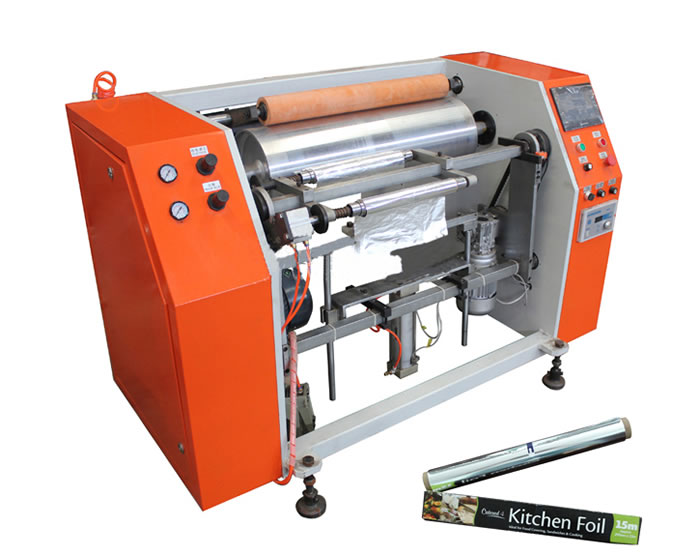

HSRW-500B High speed Aluminum foil Rewinder Machine
| HSRW-500B High speed Aluminum foil Rewinder Machine |
| Categories: Slitting Rewinder Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Specification :
Material thickness: 0.009-0.02mm
Maximum Unwinding Width: 500mm
Maximum Unwinding Diameter: 600mm
Rewinding Width: 100-500mm
Mother Core Diameter: 76mm/152mm (option)
Finished Product Core Diameter: 25mm/30mm/35mm (option)
Length of production: 30m-400m
Production Speed : 0-300m/min
Power of Motor: 2.2 kw
Machine Weight: 1200 kg
Machine Dimension (LxWxH): 1100x1350x1500mm
-
