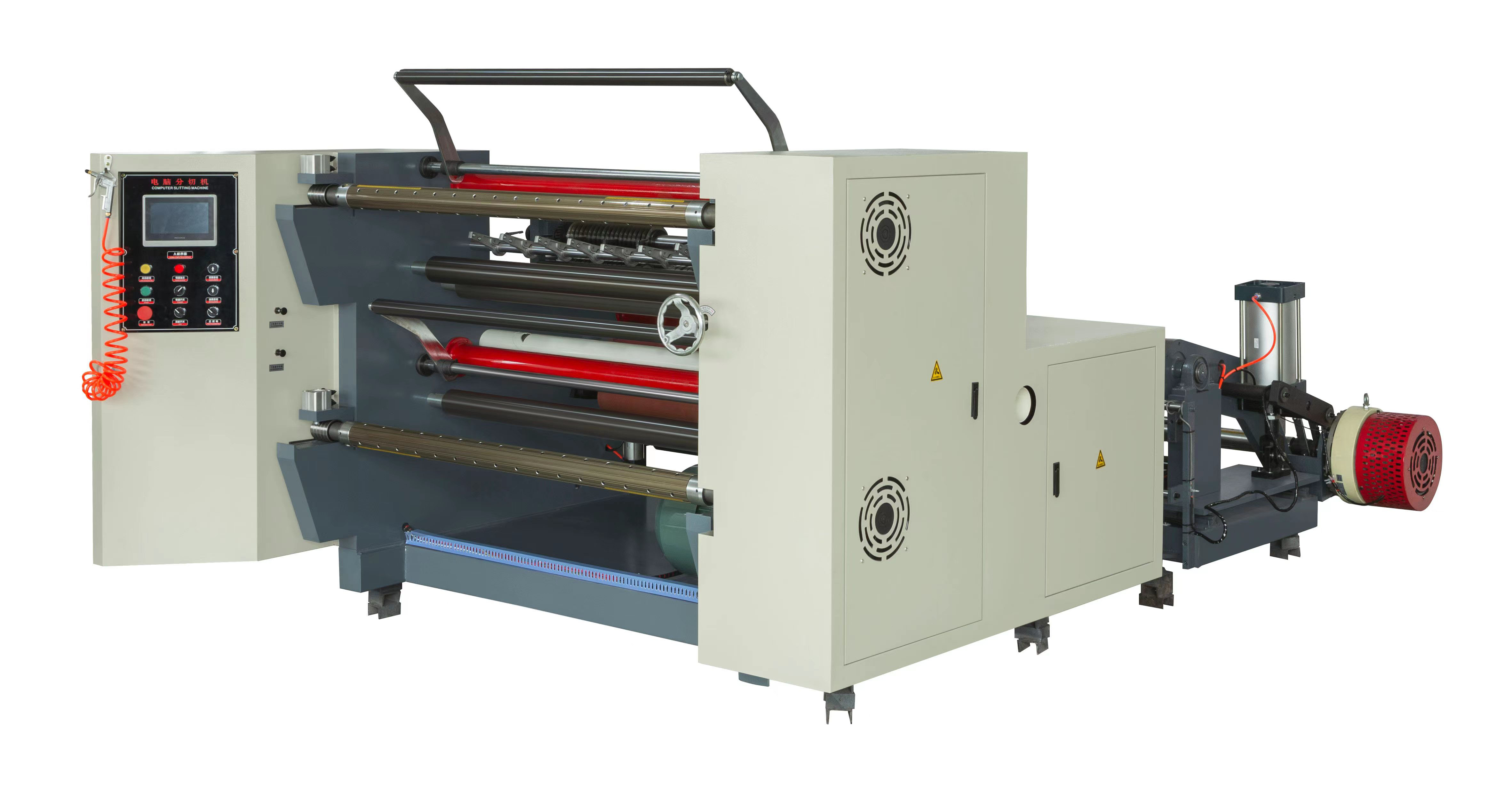

WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine
| WFQ-1100/1300/1600A Computer Horizontal Type Slitting Rewinder Machine |
| Categories: Slitting Rewinder Machine |
| suitable for slitting PP, OPP,BOPP, PVC, PET, paper, nonwoven fabric roll to roll. |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET,
CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material
according to different requirements during production.
Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ ㎡.
2. Independent master control screen, more flexible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent
material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.
Main Technical Specification
Model
WFQ-1100A
WFQ-1300A
WFQ-1600A
Suitable material
Fabric, PP, BOPP, Paper, PE, aluminum foil,etc
Max. Unwind diameter
1000mm
1000mm
1000mm
Max. Unwind width
1100mm
1300mm
1600mm
Unwind paper core
76mm
76mm
76mm
Slitting width
25-1200mm
25-1300mm
25-1600mm
Machine speed
160m/min
160m/min
160m/min
Slitting speed
150m/min
150m/min
150m/min
Rewind diameter
600mm
600mm
600mm
Main motor
3.5kw
4kw
5.5kw
Cutting precision
±0.5mm
±0.5mm
±0.5mm
Total power
7.5kw
9kw
9kw
Gross weight
2000kg
2500kg
3000kg
Dimension
3.3×2.4×1.6m
3.3×2.6×1.6m
3.5×2.6×1.6m
-
