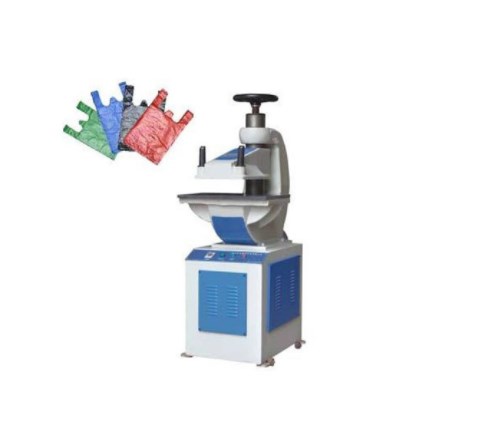

BX-10T Hydraulic Punching Machine
| BX-10T Hydraulic Punching Machine |
| Categories: Other Assistant Equipment |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Useful:

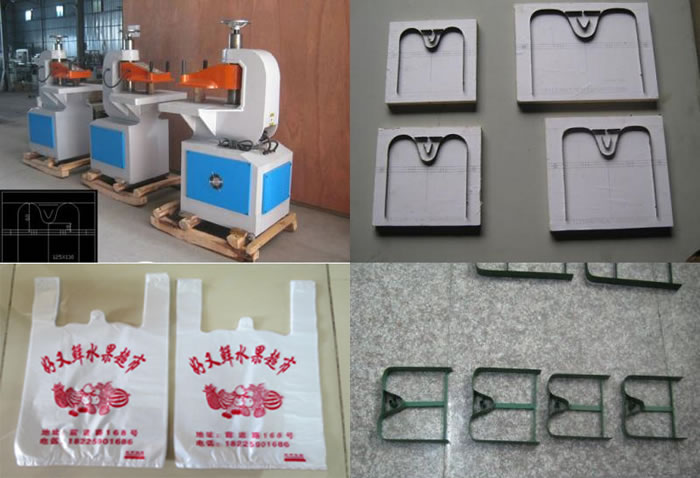

This machine special used for punching plastic t shirt bag, non woven fabric t shirt bag,the punch size
according to the bag size make blade mold.
it can ne time punching 20pcs bag, 30pcs bag,50pcs bag, etc.
Main technical specification:
|
Model |
BX-10T |
|
Power |
1.5KW |
|
Table size |
710×410mm |
|
Weight |
750kg |
|
Pressure |
10t |
|
Overall dimensions |
710×800×1300mm |
|
Max. Wash of cutting dint |
100kn |
|
Swing beam with |
350mm |
|
Stroking regulate range |
5-75mm |
|
Wash of Cutting Speed |
0.10m/s |
|
Up and Down Operation Bed Distance for Usage |
65-150mm |
|
Down Table Size |
1000×500mm |
-
