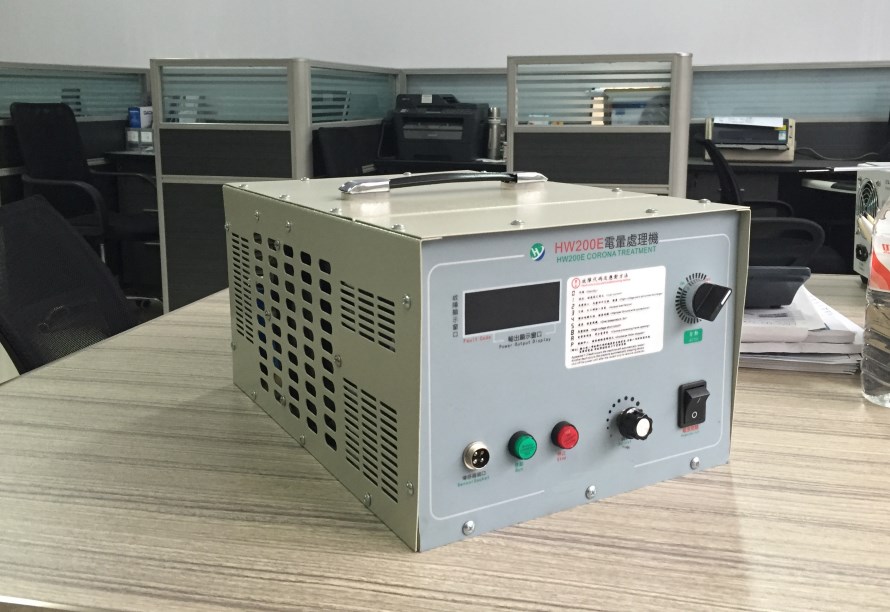

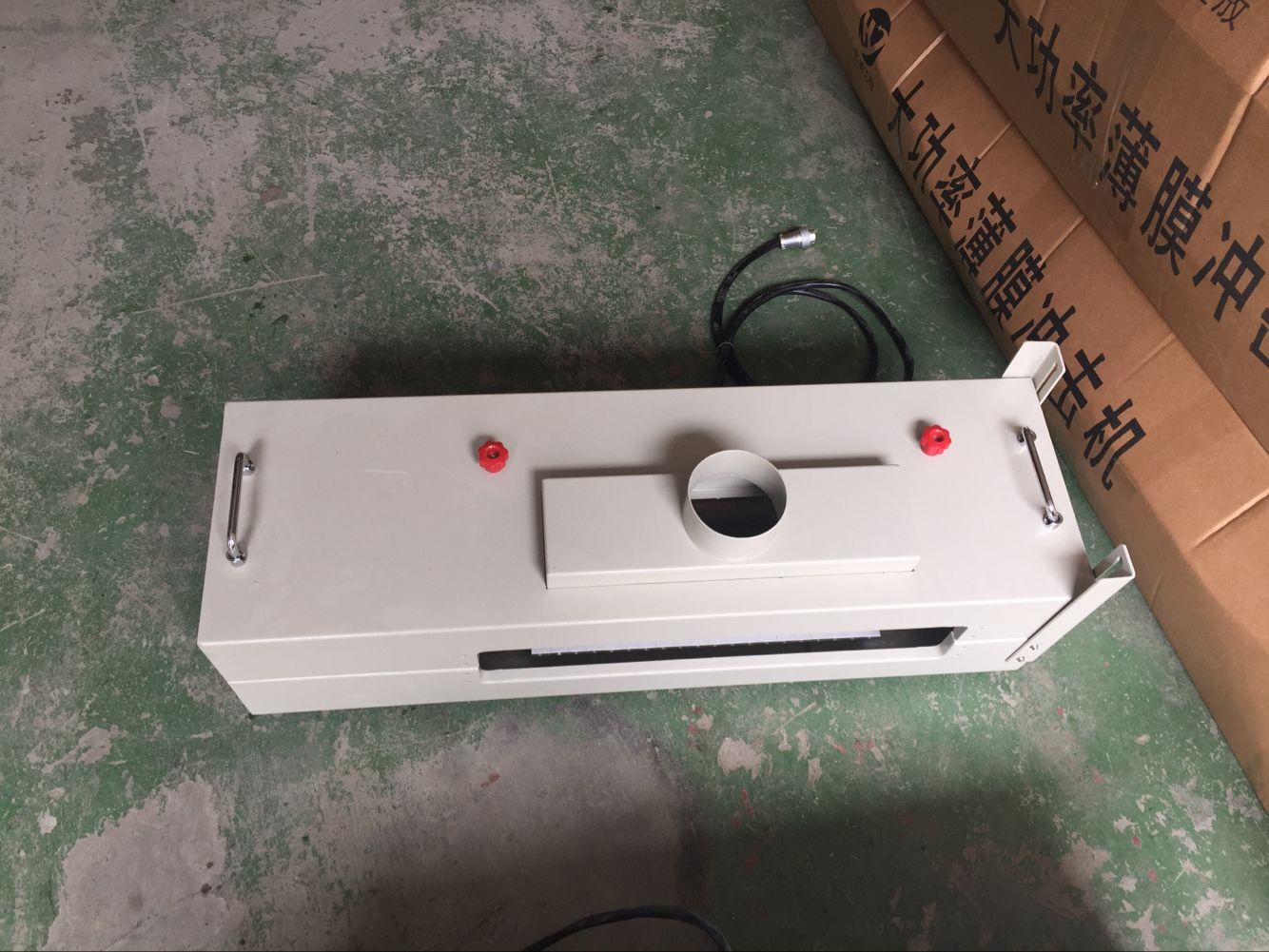

HW-2000E Series Plastic Film Corona Treatment
| HW-2000E Series Plastic Film Corona Treatment |
| Categories: Other Assistant Equipment |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Useful:
This equipment is special used for treat the plastic film surface, such as PP, PE, PVC,CPP, BOPP, etc.
After treat, the film can be easy insert ink when printing.
This machine can install on the film blowing extruder machine or the printing machine equipment.
Different width and thickness film choice different power corona, such as 1kw,2kw, 3kw, etc.
Main technical specification
|
Model |
HW-2002E |
HW-2003E |
HW-2004E |
|
Treat width |
600mm |
800mm |
1000mm |
|
Power |
2kw |
3kw |
4kw |
|
Dimension |
controller:0.6×0.4×0.3m frame: 1.2×0.2×0.4m |
controller:0.6×0.4×0.3m frame: 1.3×0.3×0.4m |
controller:0.6×0.4×0.3m frame: 1.2×0.3×0.4m |
|
Weight |
28kg |
35kg |
42kg |
|
Dyne |
38-40dyne/m |
38-40dyne/m |
38-40dyne/m |
-
