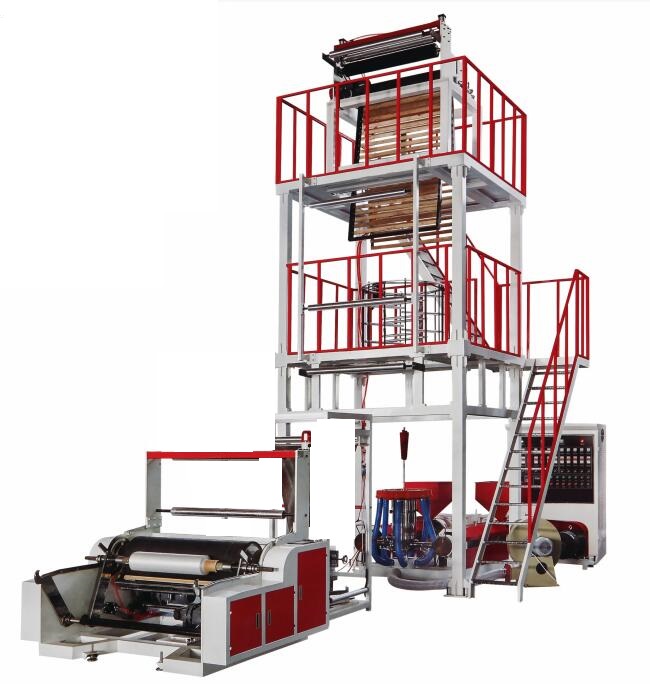

SJ45/50/55/60 Double Layers Co-extrusion PE Film Blowing Machine
| SJ45/50/55/60 Double Layers Co-extrusion PE Film Blowing Machine |
| Categories: PE Film Blowing Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1)The double layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2)The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable
service after precision finishing and nitrogen treatment.
3)The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4)Double rolling and double cutting coiling unit adopts torque motor to keep proper tensions and make rolling even
and roll changing easy.
5)It has rotary mould, auto lift traction, double cutting and rewinder device can let you choice.
2.Main technical Specification
|
Model |
SJ45/50-800 |
SJ50/55-1000 |
SJ55/60-1200 |
|
Screw diameter |
Φ45/50mm |
Φ50/55mm |
Φ55/60mm |
|
Screw L/D ratio |
28:1 |
28:1 |
28:1 |
|
Film width (mm) |
800 |
1000 |
1200 |
|
Film thickness(mm) |
0.015-0.10 |
0.015-0.10 |
0.015-0.10 |
|
Output capacity(kg/h) |
65 |
80 |
90 |
|
Main motor(kw) |
11KW+15KW |
15KW+18.5KW |
18.5KW+22KW |
|
Heating motor(kw) |
26 |
30 |
42 |
|
Dimension (L×W×H) |
4.2×2.2×4.5m |
4.6×2.4×5m |
5×2.8×5.2m |
|
Weight |
3000kg |
3500kg |
4500kg |
Extra equipment for choice list
|
Item |
Unit price |
|
Rotary die head |
1400USD |
|
Double rewind and cutter |
1400USD |
|
Auto lift traction |
500USD |
|
Auto screen changer |
1000USD |
|
Auto change rolls |
4000USD |
|
Auto feeder |
500USD |
|
Air shaft |
100USD/pcs |
|
Air compressor |
200USD/set |
-
