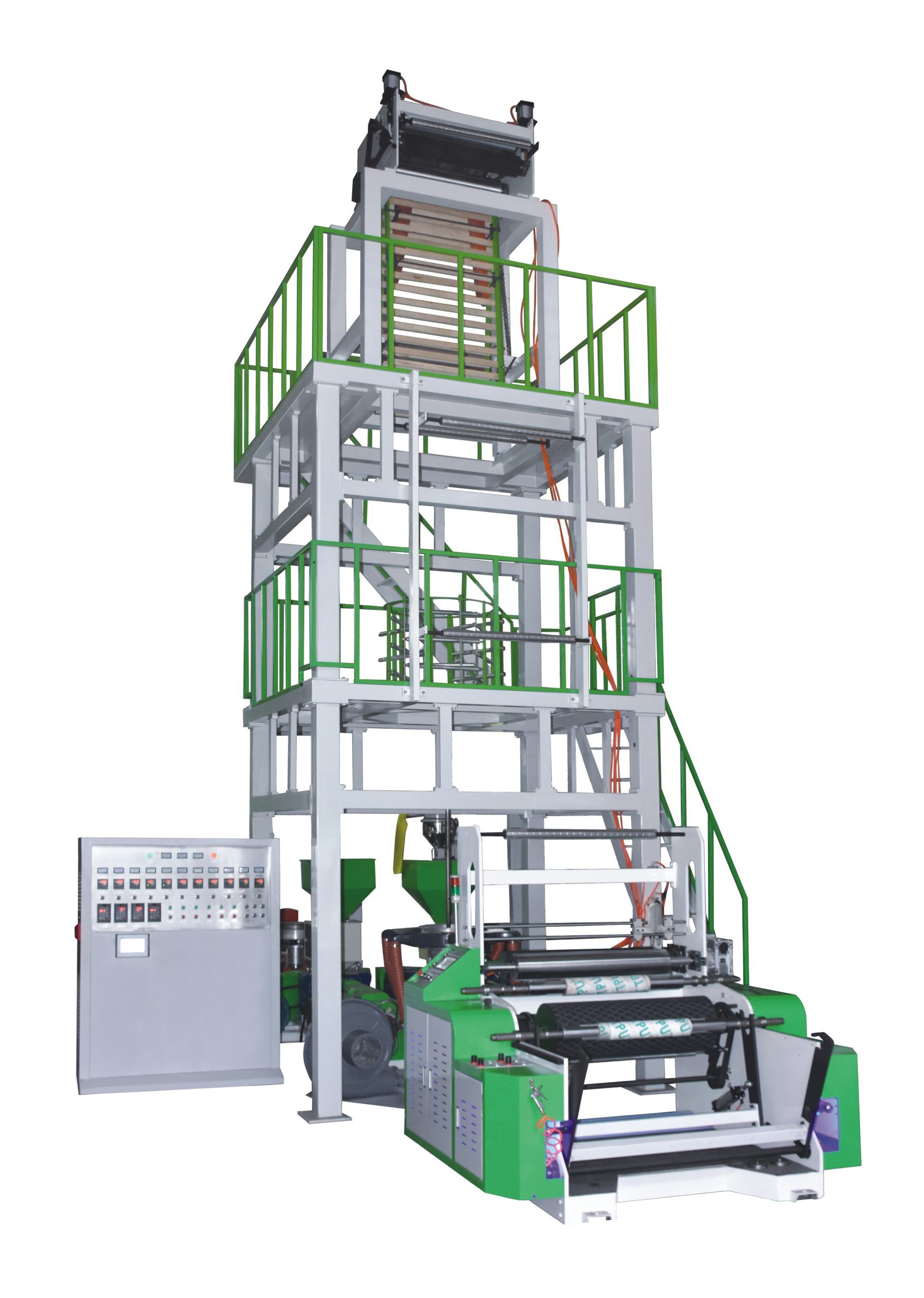

SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine
| SJ45/50/55/60H High Speed Double screw 3 layers ABA type PE film blowing machine |
| Categories: PE Film Blowing Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature:
1)The double layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2)The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3)The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4)Double rolling and double cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing easy.
5)It special for HDPE t-shirt shopping bag film making. Support mix recyclable material, fill material together for blowing high transparent film.
2. Main Technical Specification
Model
SJ45/50-800H
SJ50/55-1000H
Suitable material
HDPE or LDPE, LLDPE
HDPE or LDPE, LLDPE
Screw diameter
45mm×1set;50mm×1set;
45mm×1set;50mm×1set;
Screw L/D ratio
28:1
28:1
Film max. Width
800mm
1000mm
Film thickness
0.009-0.15mm
0.009-0.15mm
Max. Output capacity
80-100KG/H
100-120KG/H
Average power consumption
55kw
70kw
Gross weight
2800KGS
2800KGS
Dimension
5200×2800×6500mm
5500×3000×7500mm
Power condition
380V, 50Hz, 3 phase
380V, 50Hz, 3 phase
-
