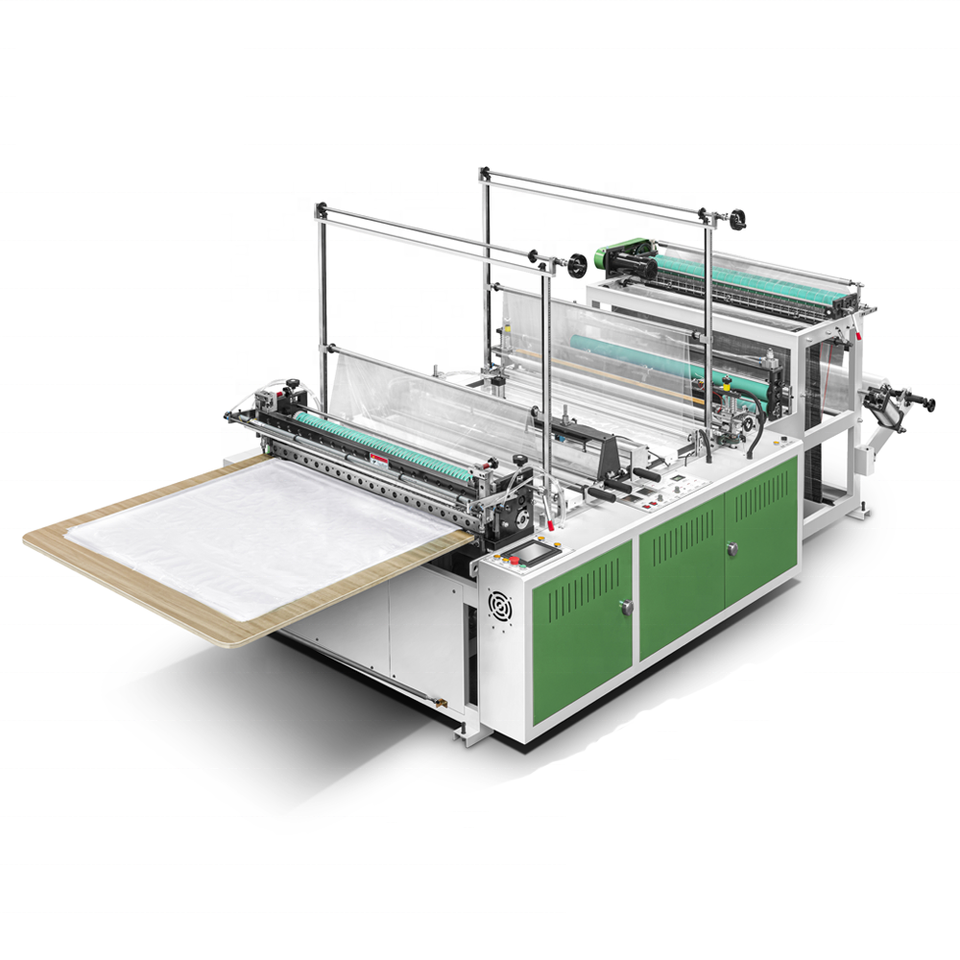

DLQ-600-2000 Computer Single Line Cold Cutting Bag Making Machine
| DLQ-600-2000 Computer Single Line Cold Cutting Bag Making Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
Useful:
This bag machine special used for making the thicker bag, big size bag. it is only with one line working.
This machie cutting and sealing blade with special treatment, keep the thicker bag sealing well quality.
Main technical specification
Model
DLQ-600
DLQ-800
DLQ-1000
DLQ-1500
Max.bag width
100-550mm
100-750mm
950mm
200-1450mm
Max. Bag length
150-1000mm
150-1000mm
100-1500mm
400-1500mm
Film thickness
0.009-0.15mm
0.009-0.15mm
0.009-0.15mm
0.009-0.15mm
Length cutting precision
±0.5mm
±0.5mm
±0.5mm
±0.5mm
Bag making speed
30-120pcs/min
30-120pcs/min
30-120pcs/min
30-120pcs/min
Main motor
1.1KW
1.5KW
2.2KW
2.2KW
Gross weight
600KG
800KG
1000KG
1200KG
Overall Dimensions
3.5×1.2×1.5m
3.5×1.4×1.5m
3.5×1.7×1.6m
3.5×2.1×1.6m
bag picture:
-
