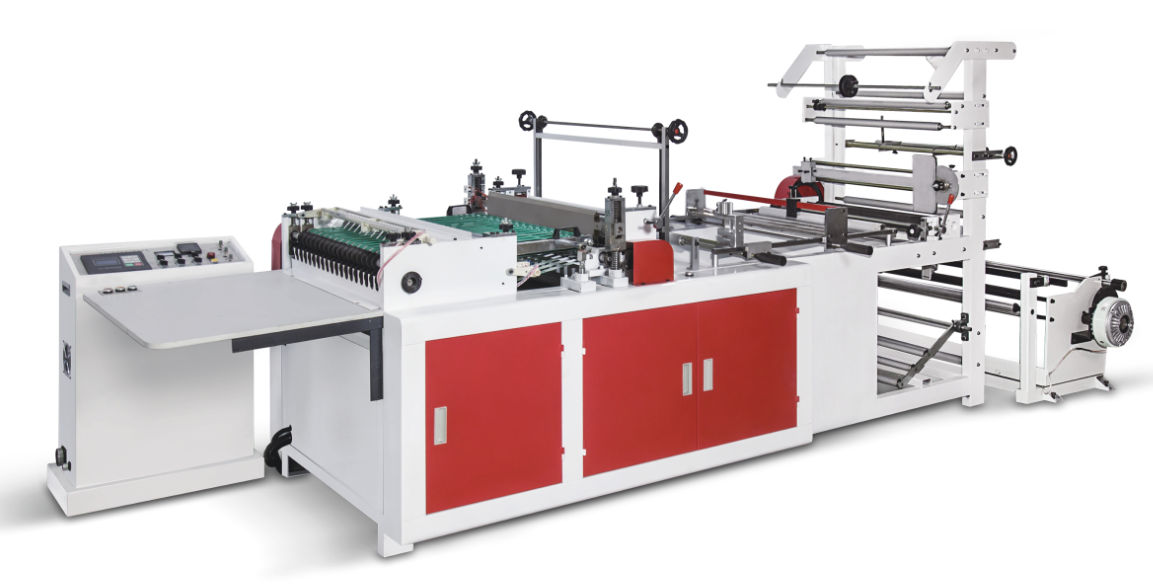

RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine
| RQL-500-1500 Computer Control Side Sealing Hot Cutting Bag Making Machine |
| Categories: Bag Making Machine |
| Tel: 0086 577-66817170 |
| Mobile: 0086 15858567170 |
| Email: rahsjx@rahsjx.com |
| Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Feature
1.1 Adopt electrical integration, computer length setting, photoelectrical tracking, etc.
1.2 Suitable for making heating sealing and bags that take PP, BOPP, HDPE, LDPE as raw material.
1.3 Suitable for packing cloth, hardware,plastic production, stationery, food and household things, etc.
2.Main Technical Specification
|
Model |
RQL-700 |
RQL-800 |
RQL-900 |
RQL-1000 |
|
Max. Width |
700mm |
800mm |
900mm |
1000mm |
|
Max. Cut length |
50-700mm |
50-800mm |
50-900mm |
50-1000mm |
|
Max. Bag width |
680mm |
780mm |
880mm |
980mm |
|
bag make speed |
40-240pcs/min |
40-240pcs/min |
40-240pcs/min |
40-240pcs/min |
|
Total power |
3.6kw |
3.8kw |
4.5kw |
4.7kw |
|
Weight |
900kg |
1000kg |
1100kg |
1200kg |
|
Dimension |
3.5×1.1×1.8m |
3.5×1.2×1.8m |
3.5×1.3×1.8m |
3.5×1.4×1.8m |
3.Finished product
-
