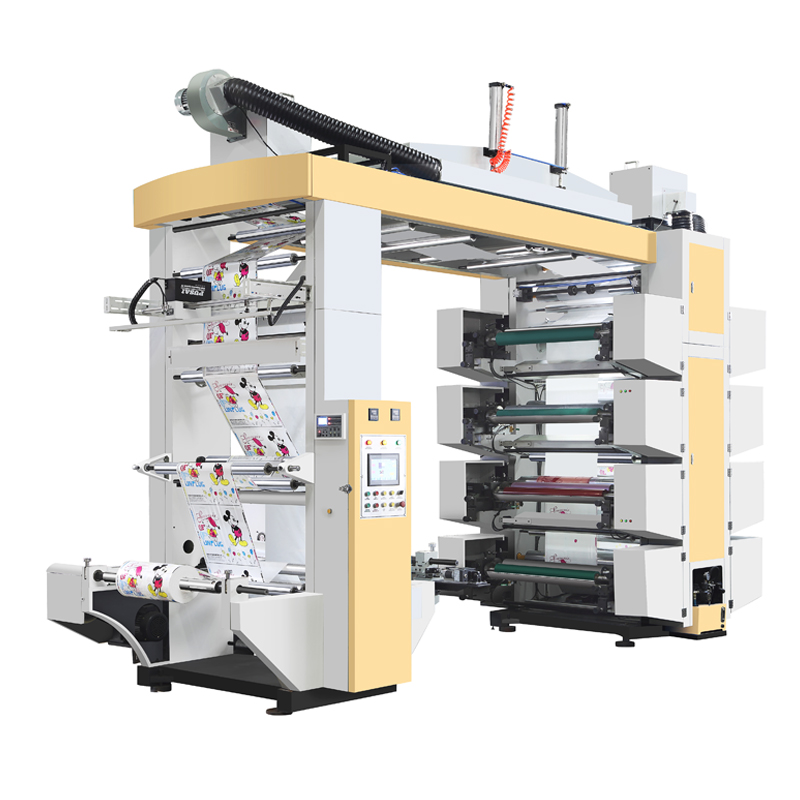

YTB-8600/8800/81000 High speed 8 colors Flexographic Printing Machine

Categories: Printing Machine Series

Tel: 0086 577-66817170

Mobile: 0086 15858567170

Email: rahsjx@rahsjx.com

Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.

CATALOGUE >

Product Details :

1.Feature

1)Ink Roller :With the Ceramic roller by 200LPI-1000LPI.high speed dot reproduction rate ,screen printing, structure three –dimensional sense of strong ,registering accurately

2)Ink :Adopt the automatic circle system ,running ink by single small motor

3)Timing :Adopt Japanese inverter controlled ,running by small fluctuations

4)Unwind EPC :adopt the high quality automatic EPC controller device

5)Unwind and rewind way : adopt the magnetism Auto tension controller.

6)Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically

7)Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically

8)Roller :adopt the special steel processing ,and through the special technique treatment , and plating thickness of 10 silk protective layer of hard chromium, beat the following in the 0.02mm

9)Traction Rollers :adopt Japanese production of small semi-enclosed bearing, static equilibrium and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small

10)Drying device: ventilation with heat blowing three devices, which use a central heating temperature control system and the control each group

11)Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.

2.Main Technical Specification

2.1 Main parameter
Model	YTB-8600/8800/81000
Max unwind width	600mm/800/1000mm
Max. Effective print width	560mm/760mm/960mm
Material	Non-woven fabric:15-120g; Paper:15~400g; PVC:15~120μm; OPP:10~100μm; BOPP:10~100μm; PE:15~150μm; NY:15~120μm; PET:15~100μm
Printing color	8 colors
Max.Length of Printing	200-1100mm
Machinery mechanical speed	10-120m/min
Max.Speed of Material Printing	10-100m/min
Rubber plate thickness	2.38mm
Total power	40kw
machine weight	6700kg
machine dimension	5.2×2.0×3.3M
Power condition	380V,3PH,50HZ/220V,3phase,60HZ
2.2 Unwind Unit
Max.unwind roller width	1500mm
Max.effective length	600mm
Max.Unwind diameter	￠800mm
Type of Unwind	auto tension with magnetic powder
Unwinder Magnetism device	5kg
Unwind auto tension controller	2—20kg
Unwind EPC system	Electrical EPC system
Feeding shaft	Air shaft
Axis core diameter	76mm
2.3 Traction Unit
Constitution of Traction	Aluminum roller,Chrome plated Roller
Traction Zones	8Zones
2.4 Printing Unit
Constitution of Printing	Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper
Girth of Pressing Roller	200-1100mm
Material of Plate	Resin or Rubber
Principle of Work	Gears Drive
Adjusting of Register	Manual
Overprint Precision	Horizontal:+-0.15mm,Vertical:+-0.2mm
Plated-glued roller adjusting	hydraulic type of plate-cylinder
Anilox Roller	Ceramic Anilox Roller:1 pcs/per color
Rubber rollers	1 pcs/per color
Scraper	Ordinary
2.5 Heating and Drying Unit
Type of Heating and drying	blowing first then heating
Heating Zones	12 zones
Power of Heating	12kw
Assistance of Drying Length	2m
Blowers	8 Fans
Power of Blowers	1.5kw×2pcs; 0.2kw×6pcs
2.6 Electrical Parts
Main motor	3.7kw
Ink-Transfer Motor	0.2kw
Inverter	3.7kw
Tension test	2--30kg
2.7 Wind Unit
Max. Rewind roller width		1500mm
Max. Rewind diameter		￠600mm
Type of Wind		Auto tension with magnetic powder
Rewinder Magnetism Powder		5-10kg
Collect Reducer Motor		1.5kw
Auto tension controller		2—20kg
The receiving shaft		Air shaft
Axis core diameter		￠76mm
