1.Feature

1.1 This air crew adopts the disposable shaping craft.

1.2 It is our factory that draws domestic and international advanced technology extensively, through a large number of production practices in having ordinary equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane in succession.

1.3 Designs science, practical. Rational  in structure of the machine.

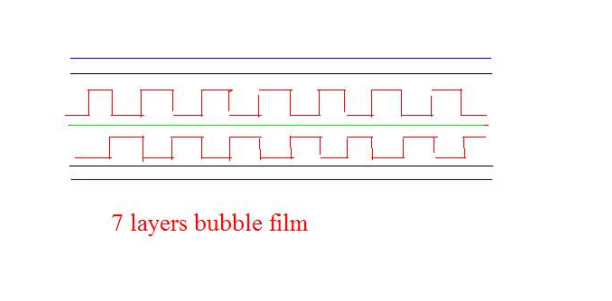

2. Machine working diagram

3.Characteristic

3.1 This machine adopts once-through shaping technique, thus has high efficiency and excellent product quality.

3.2 This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.

3.3 Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present.

3.4 It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc.

3.5 So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.

4.Application：

4.1 The bubble film is made of LDPE material.

4.2 It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention.

4.3 It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.

5.Main Technical Specification

Model	HSQPF-2000	HSQPF-1500
Main and sub-extruder screw diameter	80mm×2/ 75mm×1	75mm×2/ 55mm×1
L/D ratio	30:1	30:1
Main and sub-extruder electrical power	30kw×2/ 22kw×1	22kw×2/ 15kw×1
Width of production	2000mm	1500mm
Die head width	2200mm	1650mm
Main bubble specification	10×3.4mm/25×10mm or other size for choice
Output capacity	120-150kg/h	120-150kg/h
Total installed capacity	180kw	100kw
Overall dimension	10×8.5×2.5m	9×5.5×3m
Gross weight	8000kg	6500KG
