HSRQ-500x2G High speed 2 lines Heat Cutting T-shirt bag Making Machine

Categories: Bag Making Machine

high speed t-shirt bag making machine with double lines, both cutting blank bag and printed bag.

Tel: 0086 577-66817170

Mobile: 0086 15858567170

Email: rahsjx@rahsjx.com

Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.

CATALOGUE >

Product Details :

1.Feature:

1)This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.

2)It adopts PLC computer control, servo motor fixed length, photo-sensor tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.

3) It is of high speed degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.

4)adopt automatic punching function, increase vest bag making speed and save labor.

2. Main Technical Specification

Model	HSRQ-400×2G	HSRQ-500×2G
Bag making width	200-350mm×2line	200-450mm×2line
Bag making length	150-650mm×2line	150-650mm×2line
film thickness	0.01-0.05mm	0.01-0.05mm
Bag making speed	170-300pcs/min×2line (depend on bag length)
Air pressure request	7.5HP	7.5HP
Voltage	220V,50HZ,Single phase	220V,50HZ,Single phase
Main motor	2.2KW	2.2KW
Total power	11KW	11KW
Gross weight	2000KG	2200KG
Overall dimension	6000×1400×1700mm	6000×1600×1700mm

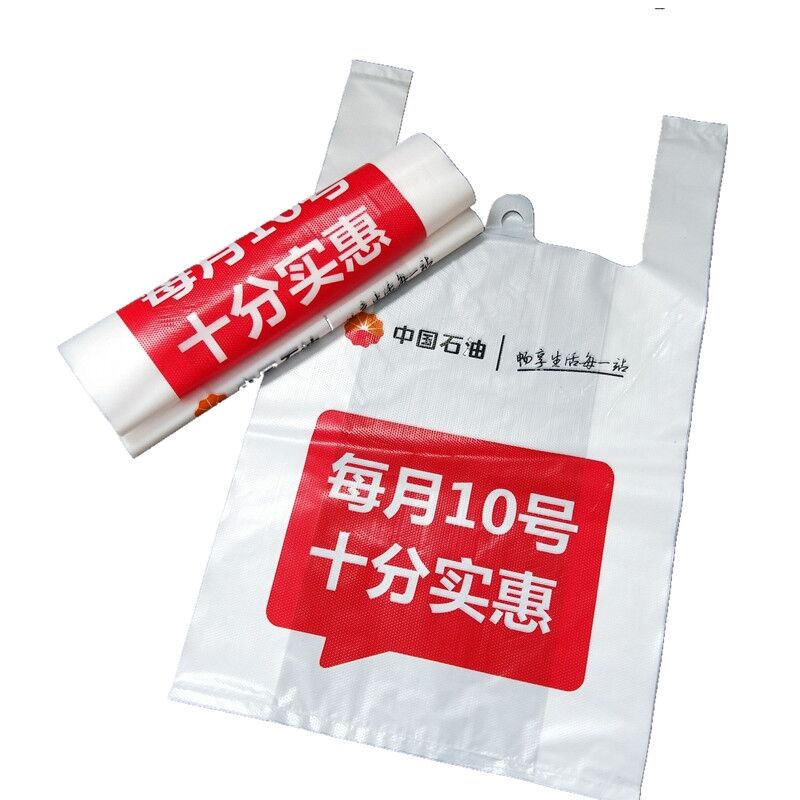

3.Bag picture
