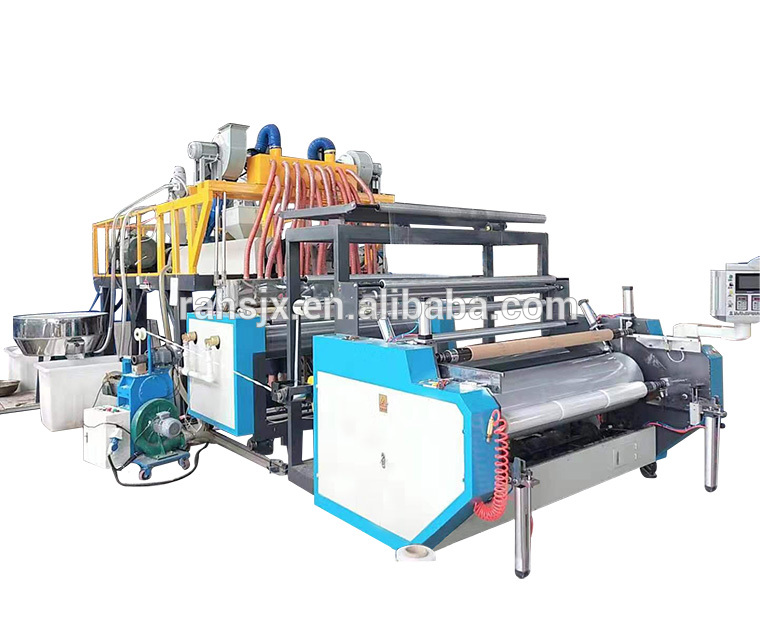

LYM-1000X2/1200x2/1500x2 high speed double layers stretch film machine

Categories: Stretch Film/Bubble Film Machine Series

Tel: 0086 577-66817170

Mobile: 0086 15858567170

Email: rahsjx@rahsjx.com

Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA.

CATALOGUE >

Product Details :

1.APPLICATION:

1)this machine adopt LLDPE as the basic mateiral, adopt different type of resin, extrusion the single side

sticky or double side sticky stretch/cling film;

2)This film with strong tension, it both with good retraction memory and self-sticky, can let the goods package well, then can avoid the goods collapse or dirty pollution on the transport way.

3)The film with good transparency and extensibility,this stretch film widely used for big goods Unitized

pallet package, it is the great replacement product for the hot shrink film.

2.MAIN TECHNICAL SPECIFICATION

Model	LYM-1000X2	LYM-1200X2	LYM-1500X2
Screw diameter	65mm/55mm	70mm/60mm	75mm/65mm
Screw L/D ratio	30 : 1	30 : 1	30 : 1
Die head	1250 （mm）	1350 （mm）	1750 （mm）
Film width	1000（500 ×2）	1200（600 ×2）	1500（750 ×2）
Film thickness	0.008- 0.05（mm）	0.008- 0.05（mm）	0.008- 0.05（mm）
Film layer	A / B	A / B	A / B
Output capacity	80-100 kg/h	100-130 kg/h	120-150 kg/h
Machine speed	50- 100 m/min	50- 100 m/min	50- 100 m/min
Total power	92 kw	120 kw	150 kw
Dimension	8000×2500×2500 mm	8200×2500×2600 mm	8500×2600×2600 mm
Gross weight	4.5 T	5 T	5.5 T

Stretch film product
